Dettagli prodotto

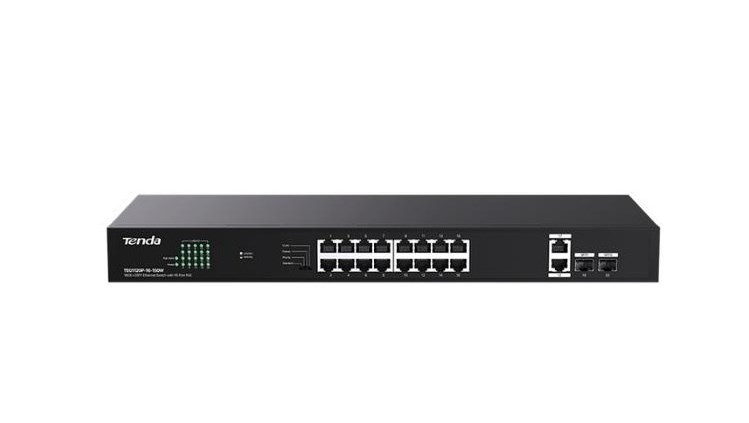

TEG1120P-16-150W è uno switch Ethernet Poe non gestito Gigabit progettato da Tenda. Lo switch fornisce 16 porte Gigabit Poe, 2 porte Gigabit RJ45 e 2 porte SFP. Supporta IEEE 802.3AF/AT STANDARD e può rilevare automaticamente PDS e alimentazione.
La potenza di uscita massima di una singola porta è 30 W e la potenza dell’intero interruttore è di 150 W. Supporta il montaggio del rack, le impostazioni con un toggle, il plug and play e il semplice networking.
È una scelta ideale per PMI, hotel, scuole e parchi con videosorveglianza e requisiti di networking wireless.
Hardware
Standard di rete
IEEE 802.3/IEEE 802.3u/IEEE 802.3ab/IEEE 802.3x/ IEEE 802.3af/IEEE 802.3at
Indicatore LED
Power
Link/Act
PoE MAX
Link/Act
PoE MAX
Interfacce
(18)1GE RJ45 ports
(2)1GE SFP ports
(2)1GE SFP ports
Trasmissione media
Recommended: CAT5/5e UTP or better
Quantità delle ventole 1
Dimensione
440mm*178mm*44mm
Livello di protezione
Port: 6 KV
Power：6 KV
Power：6 KV
Modalità di inoltro
Store-and-forward
Portata switch
56Gbps
Velocità di inoltro dei pacchetti
41.7Mpps
Buffer
4Mb
Tabella degli indirizzi MAC
8K
Jumbo frame
–
Budget PoE
Single port: AF: 15.4W, AT: 30W
Whole device: 230W
Whole device: 230W
Consumo
250W
Voltaggio in ingresso
100-240V AC，50 / 60Hz
Montaggio
Rack mounting : support
Desktop mounting: support
Wall mounting: support
Desktop mounting: support
Wall mounting: support
Ambiente
Operating Temperature: 0℃~45℃
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Storage Temperature: -40℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certificazione
FCC, CE, RoHS
Software
Funzioni
One-key to change network mode:
1.Standard: All ports can communicate with each other. It can be used as a common non-management PoE switch.
2.Priority: Ports 1 to 8 are high-priority ports, which greatly reduce packet loss and congestion when the network is congested.
3.Extend: The maximum transmission distance of the 9-16 ports of the switch can reach 250 meters, and all ports can communicate with each other.
4.VLAN: Ports 1 to 16 cannot communicate with each other, but can communicate with ports 17, 18, SFP1 (19), and SFP2 (20), which can be used to isolate broadcast storms and DHCP conflicts.
1.Standard: All ports can communicate with each other. It can be used as a common non-management PoE switch.
2.Priority: Ports 1 to 8 are high-priority ports, which greatly reduce packet loss and congestion when the network is congested.
3.Extend: The maximum transmission distance of the 9-16 ports of the switch can reach 250 meters, and all ports can communicate with each other.
4.VLAN: Ports 1 to 16 cannot communicate with each other, but can communicate with ports 17, 18, SFP1 (19), and SFP2 (20), which can be used to isolate broadcast storms and DHCP conflicts.
