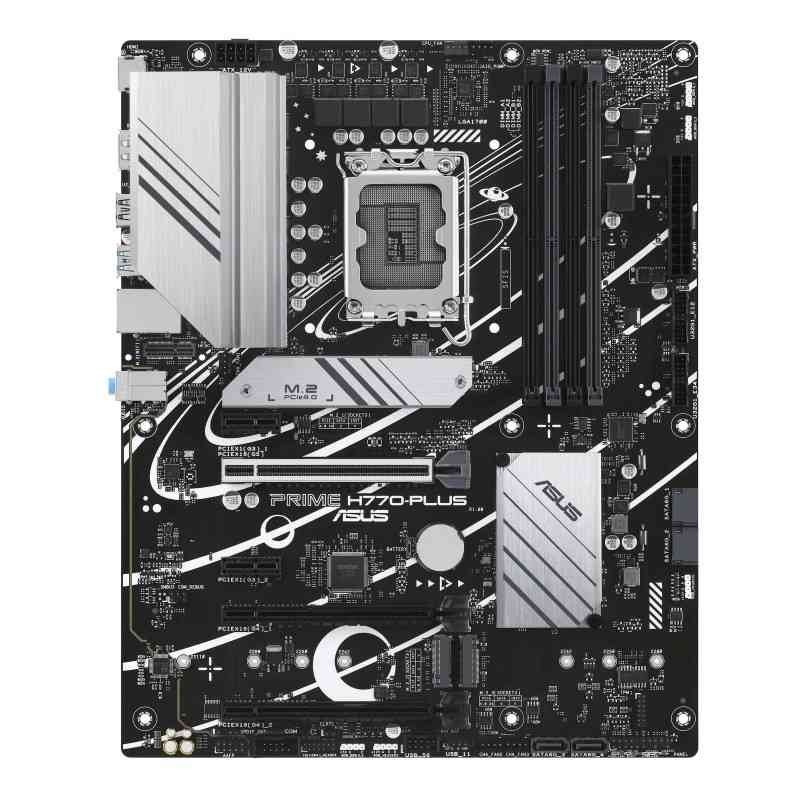

SCHEDA MADRE PRIME H770-PLUS (90MB1EE0-M0EAY0) SK 1700
182,83 €
EAN: 4711387258347
Scheda madre Asus PRIME H770-PLUS Gaming – Supporto processori Intel® Socket 1700 12/13th Gen Intel® Core™, Pentium® Gold and Celeron® – Ram 4x DDR5 – Hdmi, DisplayPort – 8x Usb3.2 / 6x Usb2.0 – GLan – Audio HD – ATX
Dettagli prodotto
Socket Intel® LGA 1700: pronto per i processori Intel® di 13a e 12a generazione
Connettività ultraveloce: PCIe 5.0, tre PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 Type-C® e supporto header Thunderbolt™ (USB4®)
Raffreddamento completo: dissipatore di calore VRM, dissipatore di calore M.2, dissipatore di calore PCH, connettori per ventole ibride e Fan Xpert 2+
Tecnologia di memoria esclusiva: ASUS Enhanced Memory Profile II e ASUS OptiMem II
Illuminazione Aura Sync RGB: connettori Gen 2 indirizzabili integrati e connettori Aura RGB per strisce LED RGB, facilmente sincronizzabili con l’hardware compatibile con Aura Sync
Cancellazione del rumore AI bidirezionale: riduce il rumore di fondo dal microfono e dall’uscita audio per comunicazioni cristalline nei giochi o nelle videoconferenze
- CPU
Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. - Chipset
Intel® H770 Chipset
- Memory
4 x DIMM slots, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. - Graphics
1 x DisplayPort**
1 x HDMI™ port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1. - Expansion Slots
Intel® 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot
Intel® H770 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
2 x PCIe 3.0 x1 slots
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. - Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® H770 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. - Ethernet
1 x Realtek 2.5Gb Ethernet
- Wireless & Bluetooth
Vertical M.2 slot only (Key E, CNVi & PCIe)*
* Modulo Wi-Fi venduto separatemente - USB
Rear USB (Total 8 ports)
3 x USB 3.2 Gen 2 (10G) ports (2 x Type-A + 1 x USB Type-C®)
3 x USB 3.2 Gen 1 (5G) ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
2 x USB 3.2 Gen 1 (5G) headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports - Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
Audio Features
– Audio Shielding
– Premium audio capacitors
– Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. - Back Panel I/O Ports
3 x USB 3.2 Gen 2 (10G) ports (2 x Type-A + 1 x USB Type-C®)
3 x USB 3.2 Gen 1 (5G) ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Vertical M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks - Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 (5G) headers support 4 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
2 x Aura RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header - Special Features
ASUS 5X PROTECTION III
– DIGI+ VRM
– LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
ASUS Q-Design
– Q-DIMM
– Q-LED Core
– Q-Slot
ASUS Thermal Solution
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY
– ProCool
Aura Sync
– Aura RGB headers
– Addressable Gen 2 headers - Software Features
ASUS Exclusive Software
Armoury Crate
– Aura Creator
– Aura Sync
– Fan Xpert 2+
– Power Saving
– Two-Way AI Noise Cancellation
AI Suite 3
– DIGI+ VRM
– PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode - BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
- Manageability
WOL by PME, PXE
- Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
2 x Screw Packages for M.2 SSD
Documentation
1 x User guide - Operating System
Windows® 11, Windows® 10 64-bit
- Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
