Dettagli prodotto
- Access Point Wi-Fi 6 – Standard Wi-Fi 802.11ax ad alta efficienza. Velocità fino a 574Mbps in 2.4 GHz e 1201Mbps in 5GHz, per una velocità combinata delle due bande fino a 1775Mbps.**

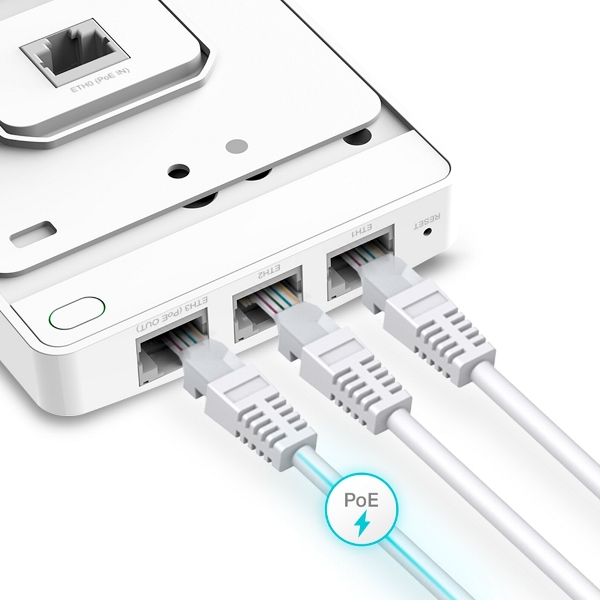

- Connettività Gigabit – 4 porte Gigabit Ethernet – 1 uplink + 3 downlink. Una delle porte di downlink supporta PoE passthrough per garantire alimentazione ai dispositivi PoE connessi. ‡
- Installazione semplice e Supporto PoE – EAP615-Wall è compatibile con supporto standard 503 a muro, il supporto PoE 802.3af/at consente la massima flessiblità di installazione.
- Dispositivo integrato Omada SDN – La nuova soluzione Omada Software Defined Networking consente di gestire le reti Omada con modalità Hybrid Cloud e Full-Cloud. Integra Access Point della serie EAP, Hardware e software controller Omada, Router VPN SafeStream e Switch JetStream by Omada.
- App Omada – L’intuitiva app Omada, per dispositivi Android e iOS, consente di accedere da remoto alla rete tramite Cloud, in qualunque momento, ovunque ti trovi.
- Rete Ospiti – Autenticazione rapida e sicura tramite Captive Portal con molteplici opzioni di login.*
| CARATTERISTICHE WIRELESS | |
|---|---|
| Wireless Client Capacity | 100+△ |
| Standard wireless | IEEE 802.11ax/ac/n/g/b/a |
| Frequenza | 2.4 GHz and 5 GHz |
| Signal rate | • 5 GHz: Up to 1201 Mbps • 2.4 GHz: Up to 574 Mbps |
| Funzionalità wireless | • 16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming† • Beamforming • MU-MIMO • Rate Limit • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP |
| Sicurezza wireless | • Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Potenza di trasmissione | • CE: < 20 dBm (2.4 GHz, EIRP) < 23 dBm (5 GHz, EIRP) • FCC: |
| GESTIONE | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes (Through OC300, OC200, or Omada Software Controller) |
| Avvisi e-mail | Yes |
| LED ON/OFF | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| Log di sistema locale e remoto | Local/Remote Syslog |
| SSH | Yes |
| Gestione web-based | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| ALTRO | |
|---|---|
| Certificazione | CE, FCC, RoHS |
| Contenuto della confezione | • AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall • Installation Guide • Mounting Kits |
| Requisiti di sistema | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Ambiente | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
| CARATTERISTICHE HARDWARE | |
|---|---|
| Interfaccia | • Uplink: 1× 10/100/1000 Mbps Ethernet Port • Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.) |
| Physical security lock | Yes |
| Tasto | Reset |
| Alimentazione | 802.3af/at PoE |
| Consumo energetico | EU: 10W (802.3at PoE, PoE Out off) US: 11.5W (802.3at PoE, PoE Out off) |
| Dimensioni ( L x P x A ) | 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in) |
| Dimensions | 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in) |
| Antenna | 2 Dual-Band Antennas • 2.4 GHz: 2× 3 dBi • 5 GHz: 2× 4 dBi |
| Tipo di montaggio | Wall Plate Mounting |
